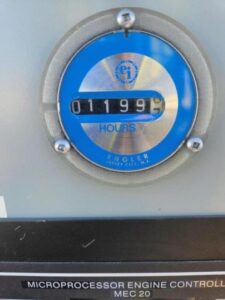

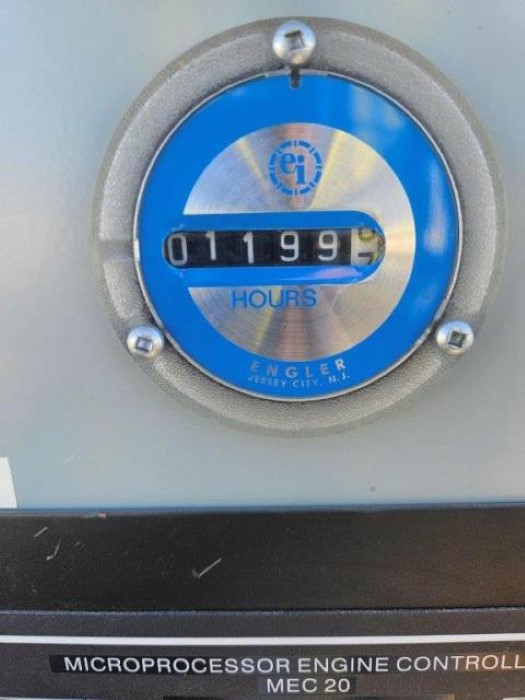

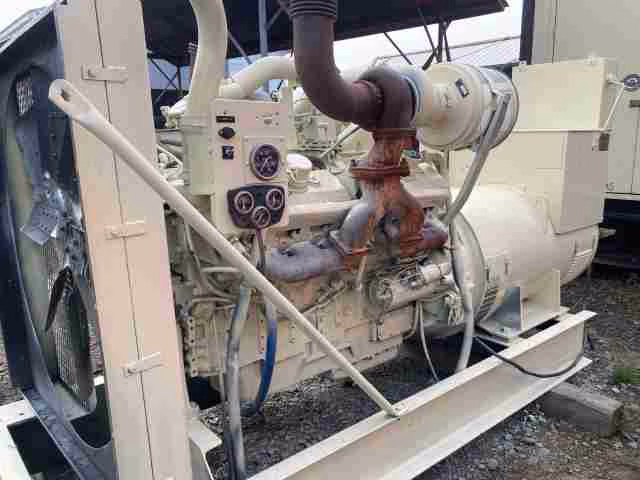

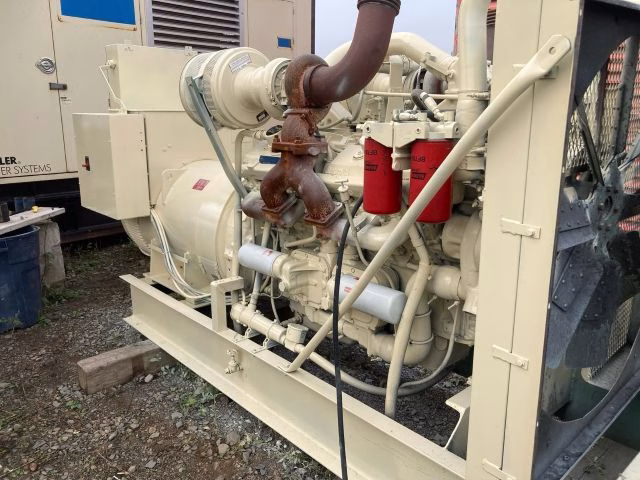

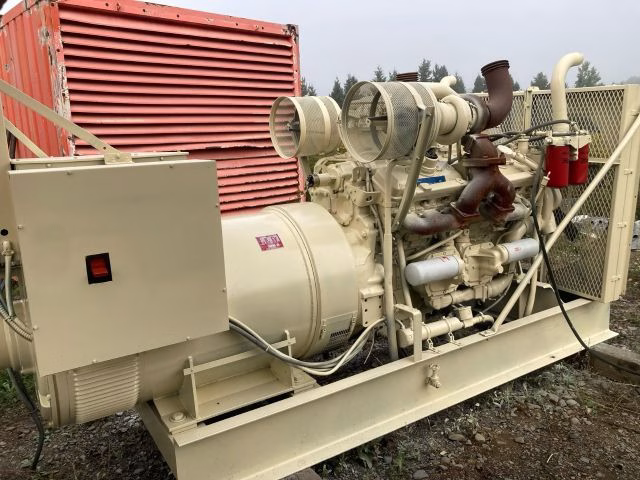

500 KW Kohler Diesel Generator in Enclosure,1800 rpm, 347/600 Volt, 60 HZ, Only 1199 hours since new. Model 500ROZD Turbocharged after-cooled, Generator: Stamford Model AC 634 A, 500 KW class F insulation, 80 degrees C temperature rise, with PMG, NEW Frame Mounted Radiator, Exhaust, Circuit Breaker, It was installed in a government building in Alberta and maintained by the dealer under a service contract. Pictures are before generator was installed in the enclosure,
- Enclosure with two man doors, radiator air intake louvres and safety screen for air.
- 635 Gallon Double Walled Base Load Fuel Tank.
- Tomson Technologies MEC 20 electronic digital controllers
- Dual engine block heaters 2500 Watts each with new hoses
- Mounted radiator and pusher Fan
- Analogue amp, volts and frequency meters
- Voltage adjust rheostat
- Indoor heavy-duty air cleaners
- Twin exhausts with twin mufflers
- Safety shutdowns for over speed, under speed, over voltage, low engine pressure, high engine temperature
- Engine oil pressure gauge
- Engine temperature gauge
- Rev counter
- Manual stop start override
- Charging ammeter
- 24 volt charging alternator
- GAC electronic governor and actuator
- Air shut-off solenoid for positive air shut off over speed protection
- Wall-mounted circuit breaker in NEMA 1 enclosure
- Load tested for 4 hours in July to Government Specification CSA282
