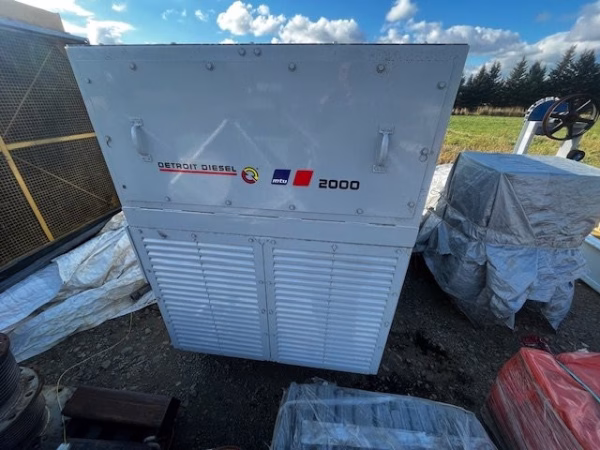

2 MW Generator End, Marathon Heavy Duty High Voltage Generator, 1800 rpm, 60 HZ, 12,470 volt, 13.2 volt, 13.8 volt, SAE00/21 flywheel and flywheel housing

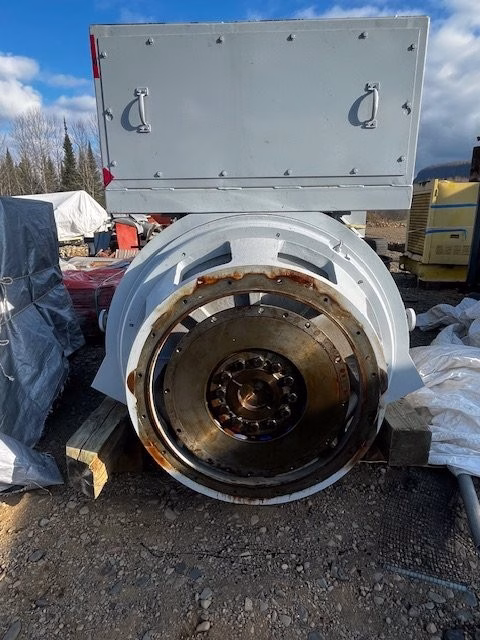

Marathon High voltage frame 1020 FDH1244, SAE00/21 flywheel and flywheel housing

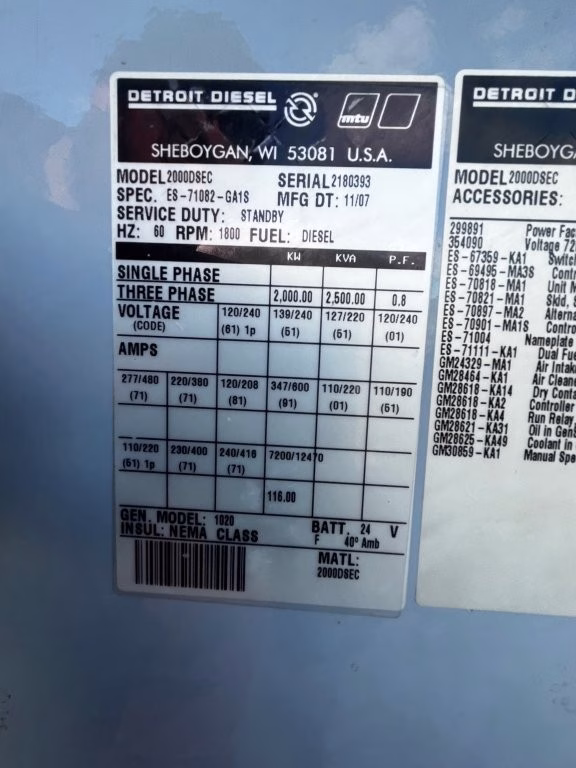

12,470 volt WYE or 7,200V Delta: Rating: 2000 kW, 2500 kVA at 105 degrees C, 2,160kW @ 130 degrees
13,200 volt WYE or 7621 Volts delta rating:: 2010 KW at 105 degrees C , 2250 kW at 130 degrees rise
13,800 WYE or 7,967 Delta Volt rating: 2000 KW @105 deg rise, , 2,180 kW @ 130 deg rise
