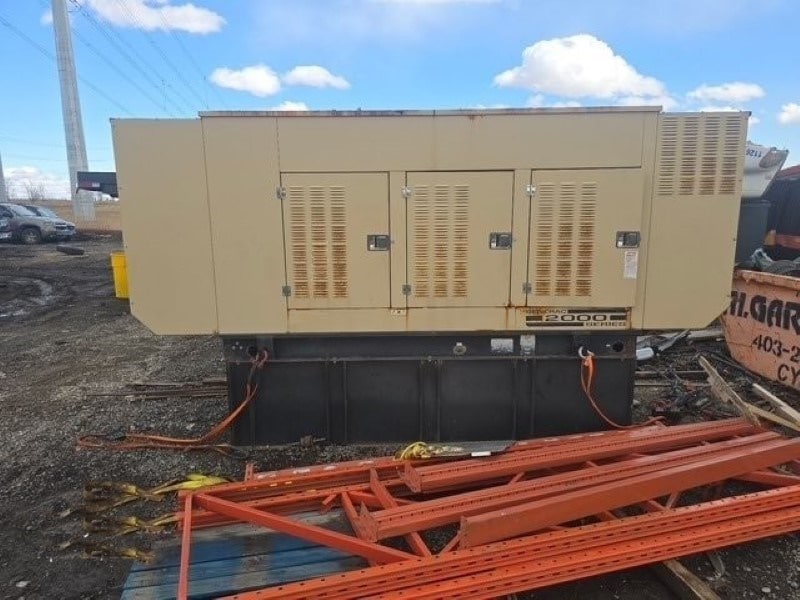

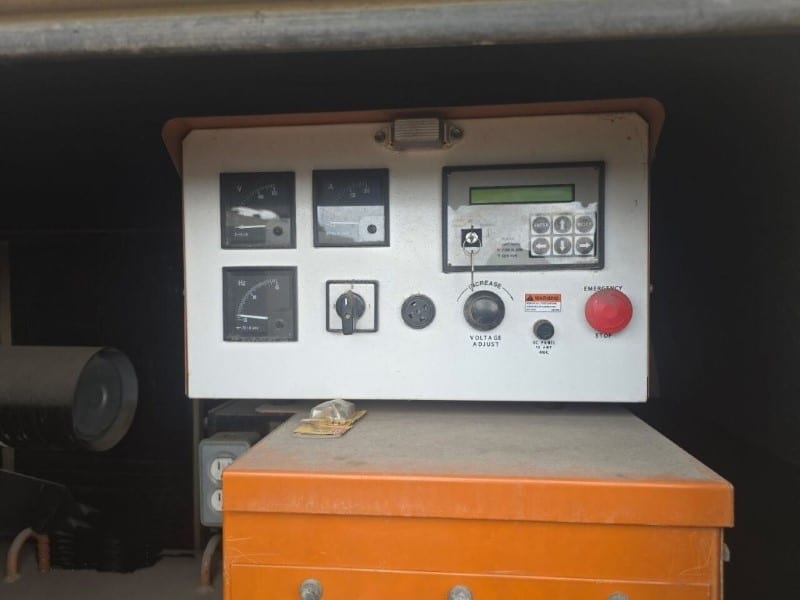

150 KW Generac Generator Set Enclosed, Diesel Fuel, 1800 rpm, 3 phase, 480 volt, Only 151 hours, Model SD150 Fuel Efficient 6 cylinder in-line 6.7L, Frame Mounted Water Cooled Radiator, Circuit Breaker, Exhaust Piping, Muffler, Block Heater, Battery Charger, Digital and Analogue Control Panel, Base Fuel Tank, runs excellent.
Manufacture: Generac
- EPA Emissions Compliance Stationary Emergency
- EPA Emissions Reference See Emissions Data Sheet

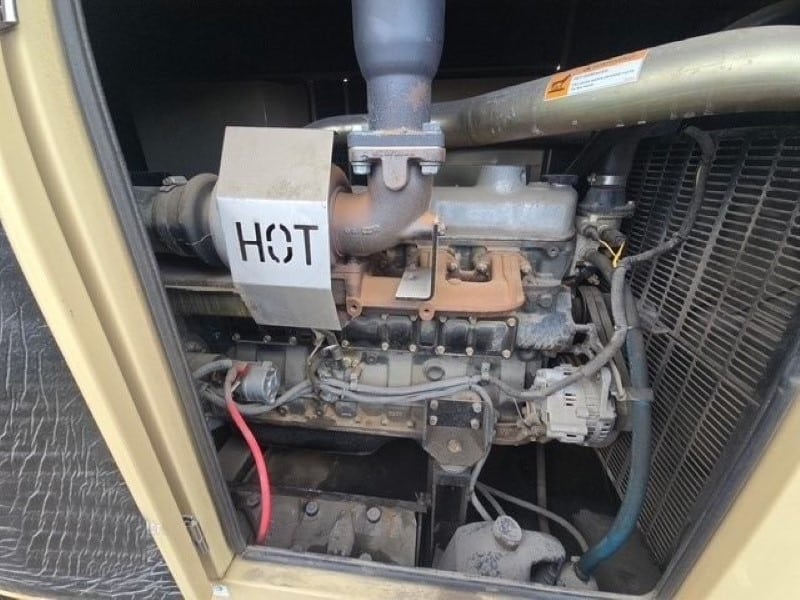

- Cylinder: 6
- Type In-Line
- Displacement – L (cu In) 6.7 (406.86)Bore – mm (in) 104 (4.09)
- Stroke – mm (in) 128 (5.2)
- Compression Ratio 16.5:1
- Intake Air Method Turbocharged/Aftercooled
- Cylinder Head Type 4 Valve
- Piston Type Alloy Aluminum
- Crankshaft Type Forged Steel
Engine Governing
- Governor Electronic Isochronous
- Frequency Regulation (Steady State)+/- 0.25%
- Lubrication System
- Oil Pump Type Gear
- Oil Filter Type Full Flow Cartridge
- Crankcase Capacity – L (qts) 19.6 (20.7)
- Cooling System
- Cooling System Type Closed Recovery
- Water Pump Belt Driven Centrifugal
- Fan Type Pusher
- Fan Speed (rpm) 2538
- Fan Diameter mm (in) –
- Coolant Heater Wattage 1500
- Coolant Heater Standard Voltage 120 V /240 V
Fuel System
- Fuel Type Ultra Low Sulfur Diesel Fuel
- Fuel Specifications ASTM
- Fuel Filtering (microns) 5
- Fuel Injection Electronic
- Fuel Pump Type Engine Driven Gear
- Injector Type Electronic
- Fuel Supply Line mm (in) 12.7 (0.5) NPT
- Fuel Return Line mm (in) 12.7 (0.5) NPT
Engine Electrical System
- System Voltage 12 VDC
- Battery Charging Alternator Std
- Battery Size See Battery Index
0161970SBY - Battery Voltage 12 VDC
- Ground Polarity Negative
ALTERNATOR SPECIFICATIONS
- Standard Model 520
- Poles 4
- Field Type Revolving
- Insulation Class – Rotor H
- Insulation Class – Stator H
- Total Harmonic Distortion <5%
- Telephone Interference Factor (TIF) <50
- Standard Excitation Permanent Magnet
- Bearings Single Seated Cartridge
- Coupling Direct, Flexible Disc
- Load Capacity – Standby 100%
- Prototype Short Circuit Test Yes
- Voltage Regulator Type Digital
- Number of Sensed Phases 3
- SD150 | 6.7L | 150 kW
- INDUSTRIAL DIESEL GENERATOR SET
- EPA Certified Stationary Emergency
- APPLICATION AND ENGINEERING DATA
- Regulation Accuracy (Steady State) ±0.25%
