100 KW Gas Generator

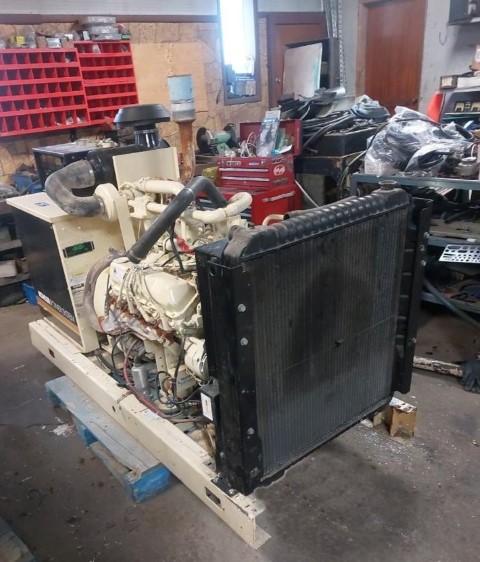

100 KW Gas Generator Set

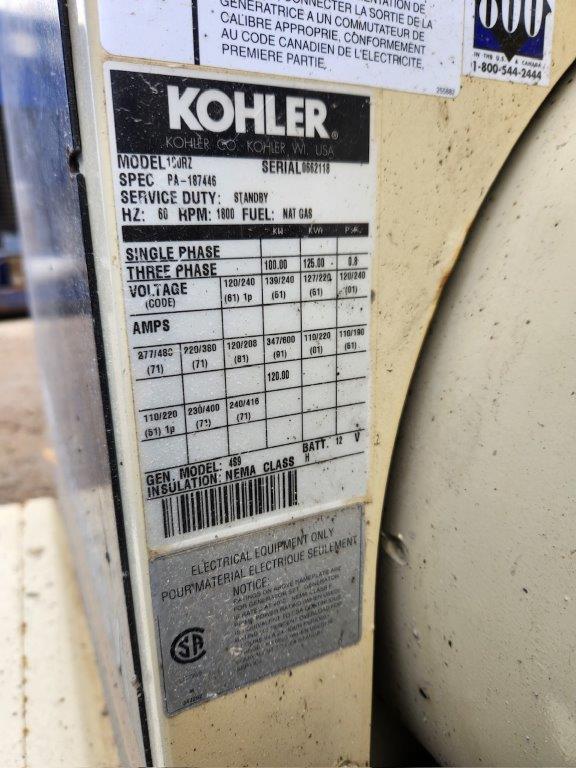

Manufacture: Kohler
Model: 100RZ
Engine: model, type LSG-875, 4-Cycle,Turbocharger
Cylinder arrangement: V8
Fuel type: LP Gas or Natural Gas
RPM: 1800 rpm
Phase: 3
Voltage: 347/600 Volt
Frequency: 60 HZ
Hours: 208 hours
Type: Open skidded, no enclosure
Fuel supply line inlet: 1 1/4 NPT
Natural gas/LPG fuel supply pressure oz./in.2 (in. H2O): 4–6 (7–11)

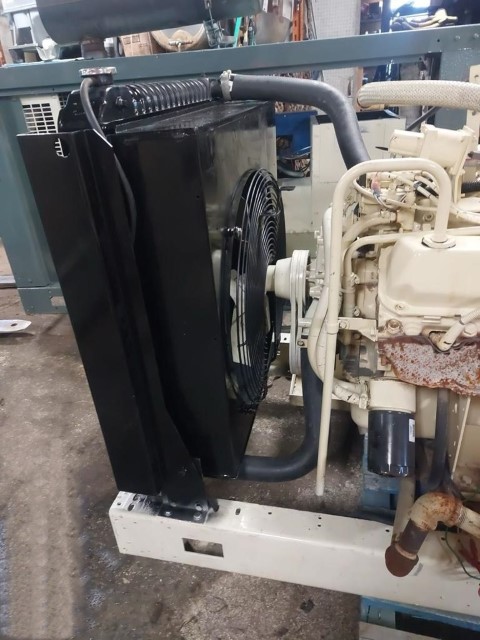

Cooling: NEW Radiator Cooled Skid Mounted

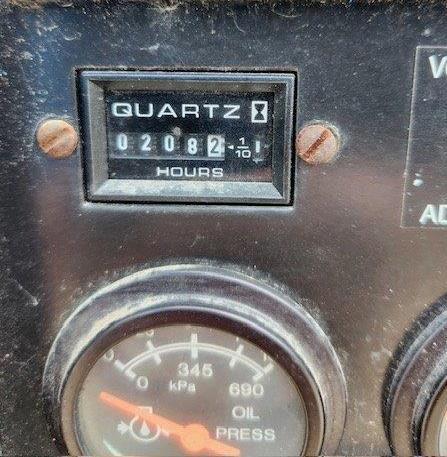

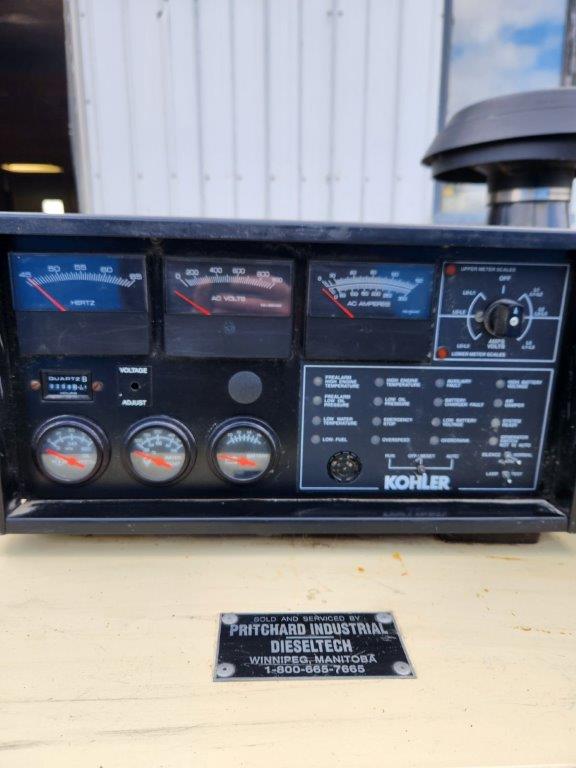

Electrical: Control Panel, Hour Meter, Breaker
Exhaust: piping and muffler
History: Operated at a government facility and maintained under contract. With only 208 hours of operation
It will provide many years of reliable service. Compact generator set and is great on fuel in good condition.

The generator set provides one-step load acceptance.
Kohler’s unique Fast-Response excitation system delivers the fastest voltage response in the industry.
The brushless, rotating-field generator has broadrange reconnectability.
Kohler’s permanent magnet-excited generator (PMG) provides superior short-circuit capability.
Other features:
Controllers are available for all applications.
Low coolant level shutdown prevents overheating.
Integral vibration isolation eliminates the need for under-unit vibration spring isolators.
An electronic, isochronous governor delivers precise frequency regulation

Complies with NEMA, IEEE, and ANSI standards for temperature rise.
Sustains short-circuit current of up to 300% of rated current for up to 10 seconds.
Sustains short-circuit current enabling downstream circuit breakers to trip without collapsing the generator field.
Self-ventilation, dripproof construction.
Vacuum-impregnated windings with fungus-resistant epoxy varnish for dependability and long life.
Superior voltage waveform from a two-thirds pitch stator and skewed rotor.
Solid-state, volts-per-hertz voltage regulator with +/- 2% no-load to full-load regulation.
Fast-Response brushless alternator with brushless exciter for excellent load response
